HEATSCOPE® PURE+
worldwide unique heating solution

heatscope-pure-plus-ambiente-heizstrahler

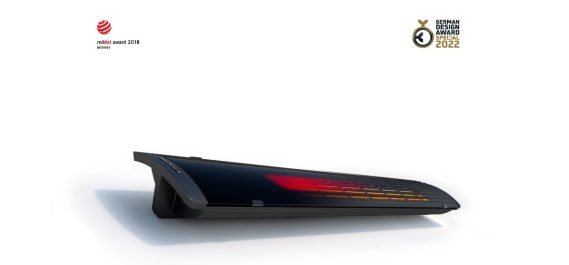

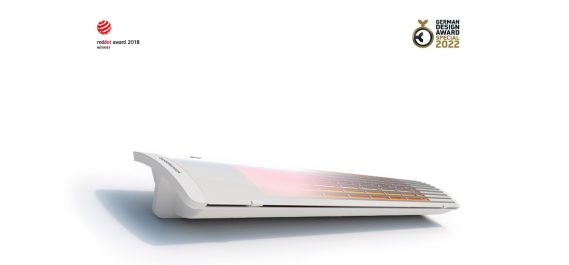

HEATSCOPE® PURE+ all season infrared heater

with a curved SCHOTT NEXTREMA glass front |   with convex shaped Y-heat-protective grid   |   all areas

If you don’t go forwards, you go backwards – continuously developing new products, Heatscope® always look ahead and proudly present a worldwide unique heating solution: the “all season heater” HEATSCOPE® PURE+!

The new HEATSCOPE® PURE+ combines the main features of the heater types PURE and NEXT.

The design heater HEATSCOPE® PURE, where a curved glass front reduces the visible light of the heating elements to a minimum and the energy heater HEATSCOPE® NEXT, where the glass-front of the PURE has been substituted by a convex Y-front grid to provide maximum heat.

Inside or outside, sheltered or wide open, at the wall, on the ceilig or even mobile. A few simple steps turn the design heater PURE, for sheltered areas, into the energy heater NEXT, for highest heat output.

Depending on the time of the year or the surrounding conditions, the user individually decides, for which of the two ranges he goes for to get heated up. Comfortable and pleasant warmth through the convex glass front or maximum heat through the curved design-frontgrid. Two apllications, one device. Always and everywhere! Glass out – grid in – maximum flexibility.

The delivery of the PURE+ always includes the HEATSCOPE® PURE. Furthermore, the Plus within the scope of delivery is always a separate frontgrid. Depending on outside temperatures, wind influence and need of heat intensity you can easily change the frontglass against the grid – and back again.

Beside the increased IP protection class (IP25, no weather shield needed), the easy-to-handle mounting bracket and the flexible operation possibilities, the PURE+ is an aesthetic and high-end heating solution for all surroundings – a summer garden, a pergola or mobile used on an open terrace.

It was no accident that the HEATSCOPE® PURE from design studio Bjørn Blisse was decorated with the RedDot Design Award in 2018, the HEATSCOPE® NEXT with the German Design Award in 2022.

All HEATSCOPE® PURE+ models + specifications

PURE+HEATING + DESIGN/ENERGY

+ innovative technology, design by Bjørn Blisse

+ horizontally and vertically mountable –
incl. cable with connector

+ only one mounting bracket –
mounted in less than no time

+ IP65/IP25 rating –
installation without any weather shield!

HEATSCOPE® PURE+ 3000W AB

Basic model: MHS-PH3000AB.100

Power: 3000 W / 13,04 A
Measurements (LxWxH): 1044 x 166 x 87mm
Weight with glass front: 7,5kg
Weight with grid front: 6,5kg

HEATSCOPE® PURE+ 3000W WT

Basic model: MHS-PH3000WT.100

Power: 3000 W / 13,04 A
Measurements (LxWxH): 1044 x 166 x 87mm
Weight with glass front: 7,5kg
Weight with grid front: 6,5kg

Equipment Basic Model:

Basic models: external remote, integrable in home systems, e.g. somfy, KNX, Elsner etc.

Optional upgrade with a SmartBox control unit for controlling with IR remote control or somfy I/O remote

Installation equipment always included:

  • only one mounting bracket
  • assembled in a few simple steps
  • distance max. 140mm

Installation requirements

Specifications HEATSCOPE® PURE+ with glass front

  • Black or white coated aluminum body
  • High performance industry-glass-ceramics SCHOTT NEXTREMA
  • Energy efficient double carbon heating elements
  • Patented reflector heating system with ventilated back
  • visible light: < 300 Lumen
  • Maximum heat output within approx. 30 seconds

  • power: 3000W
  • visible light: < 300 Lumen
  • radiant efficiency: ≥90%
  • max. performance within <20-30 seconds
  • protection class: IP65

 All basic models (PURE+ PH-Series) combined with a DEVIreg Smart Thermostat meet all requirements of the EU regulations 2015/1188 of the eco design directive 2009/125/EG).

Specifications HEATSCOPE® PURE+ with grid front

  • Black or white coated aluminum body
  • Convex shaped heat protection fin front with Y-design
  • Energy efficient double carbon heating elements
  • Patented reflector heating system with air-conditioned back
  • visible light: < 600 Lumen
  • Maximum heat output within approx. 15 seconds

  • power: 3000W
  • visible light: < 600 Lumen
  • radiant efficiency: ≥90%
  • max. performance within <15-20 seconds
  • protection class: IP25

 All basic models (PURE+ PH-Series) combined with a DEVIreg Smart Thermostat meet all requirements of the EU regulations 2015/1188 of the eco design directive 2009/125/EG).

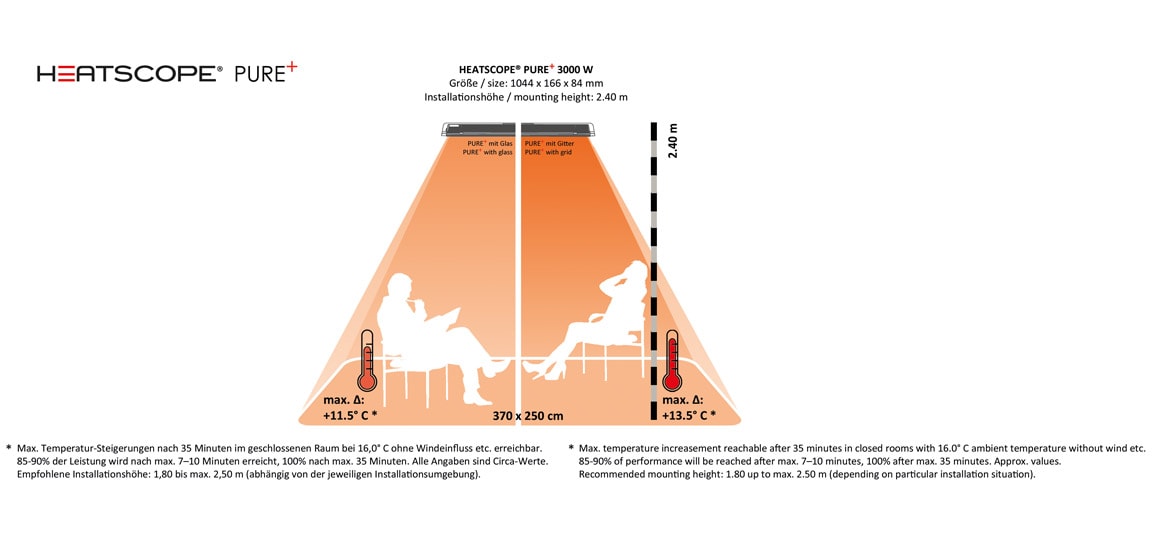

Please include the following points in your plans:

Please note that the best performance depends on several factors. Including:

  • environment (indoors or outdoors, closed or open, wind sensitive or protected)
  • height of installation (1.80-2.50m)
  • beam angel
  • wind and weather influences
  • voltage fluctuations
HEATSCOPE SmartBox: control unit for manual controlable infrared heaters

HEATSCOPE® SmartBox design control unit

with convex front    |   for all manual controllable HEATSCOPE® heaters   |   infrared and somfy® compatible

SMARTBOX is THE control unit for HEATSCOPE® PURE+ energy heaters!
Just mount it between power supply and heater – and it‘s possible to control the HEATSCOPE® heater with the included IR remote control, to switch the PURE+ ON and OFF, to regulate it down on 50% power or to regulate it back again on full 100% output.

And if you have a somfy® I/O control unit already in action, you will love the SMARTBOX somfy® version for integration in your existing I/O system. No need to hide big actuators anymore – it‘s all inside the small box now!

All HEATSCOPE® SmartBox models + specifictions:

SMART CONTROL

+ innovative technology, design mady by Bjørn Blisse

+ installation horizontal & vertical possible – with the heater or just beneath it etc.

+ combi mounting bracket –
for installation together with the heater

+ IP protection class IP65 –
installation without any weather shield!

HEATSCOPE® SmartBox AB

MHS-SBOXI-AB.100 (incl. IR remote control)

Connection: 220–240 V AC~
Weight: 0,35 kg / 0,51 kg incl. mounting plate
Measurements SMARTBOX: 100 x 170 x 35,5 mm
IP protection class: IP65

HEATSCOPE® SmartBox WT

MHS-SBOXI-WT.100 (incl. IR remote control)

Connection: 220–240 V AC~
Weight: 0,35 kg / 0,51 kg incl. mounting plate
Measurements SMARTBOX: 100 x 170 x 35,5 mm
IP protection class: IP65

HEATSCOPE® SmartBox AB somfy®

MHS-SBOXS-AB.100 (WITHOUT somfy® remote control)

Connection: 220–240 V AC~
Weight: 0,35 kg / 0,51 kg incl. mounting plate
Measurements SMARTBOX: 100 x 170 x 35,5 mm
IP protection class: IP65

HEATSCOPE® SmartBox WT somfy®

MHS-SBOXS-WT.100 (WITHOUT somfy® remote control)

Connection: 220–240 V AC~
Weight: 0,35 kg / 0,51 kg incl. mounting plate
Measurements SMARTBOX: 100 x 170 x 35,5 mm
IP protection class: IP65

Specifications HEATSCOPE® SmartBox

  • convex formed black or white translucent front screen.
    Black or white housing (corresponding with PURE+ heater)
  • controlled via HEATSCOPE® infrared remote control or with somfy® I/O
  • mounting panel included for installation with PURE+ heater
  • remote control + batteries within scope of delivery (excl. somfy® I/O)
  • automatic shutdown after 4, 6 or 8 hours (deactivation possible)
  • idea + design: Studio Bjørn Blisse

Technical specifications smart control unit

  • power connection: 220–240 V AC~
  • weight: 0,35 kg / 0,51 kg incl. mounting bracket
  • measurements SmartBox: 100 x 170 x 35.5 mm
  • protection class: I P65
